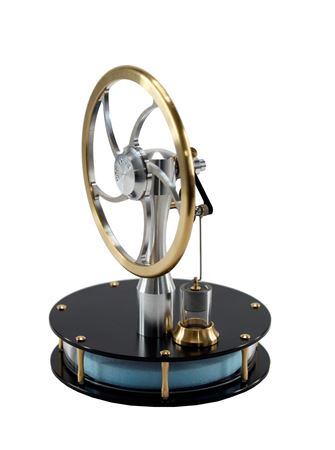

ROSS Precision Stirling Engine (BLACK KIT)






What is a Stirling engine and how do they work?
Stirling engines convert thermal energy into mechanical energy. These Stirling engines take a temperature difference between the top and bottom plate and turn it into rotational energy, rotating the flywheel. Simply placing a cup of warm coffee/tea underneath is enough for it to work. It can even run from the heat from you hand.

These Stirling engines
These wonderfully made stirling engines are a joy to watch. They can run on the heat from your hand. They really get up to a speed when placed on top of a cup of tea or coffee. Been made over a number of years and this shows with the performance.

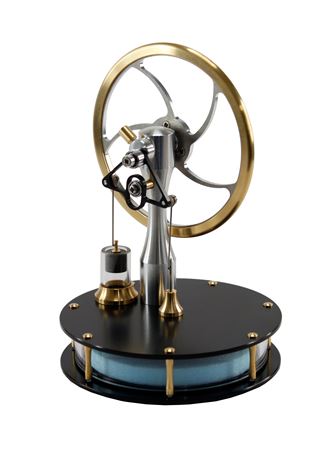

This version of these stirling engines has ross yoke mechanism which gives a wonderful visual movement.

Features
  • Heat insulated pillars with flush flat bottom finish for good surface contact with heat source
  • Connecting rods are positively located using low friction PEEK and stainless steel screws
  • All airtight seals are made with high strength precision screw threads and nitrile O rings
  • Ultra low friction demagnetised and de-greased bearings, NO lubrication required
  • CNC machined, giving crisp, clean and tidy edges all over
  • Engine parts ultrasonically cleaned before hand assembly
  • Precision engineered in England
  • Machined to micron precision


Engine materials
  • Stainless steel connecting rods and ball-race bearings
  • Micron precision Borosilicate glass cylinder
  • Micron precision Graphite power piston
  • Light-weight aluminium main pillar, hub and spokes
  • Brass chamber pillars and flywheel rim
  • Brass gland and cylinder holder


Sizes
  • Base plates - 92mm diameter
  • Displacer - 70mm diameter, 8mm thick
  • Flywheel - 82mm diameter, 4mm thick
  • Power piston - 9.5mm diameter
  • Overall height - 120mm






Price: £102.12 in



We ship worldwide





Ask us a question



Amount :

tick to show in stock IN STOCK
and
Ready to Ship


Ideal for ages 14+.
